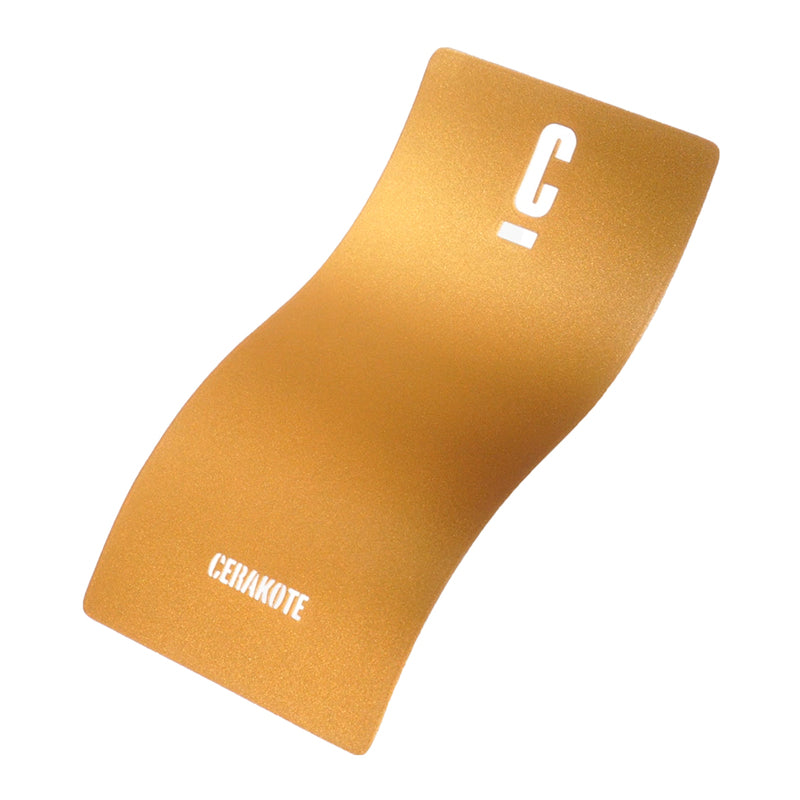

• Cerakote V-172 Gold Main

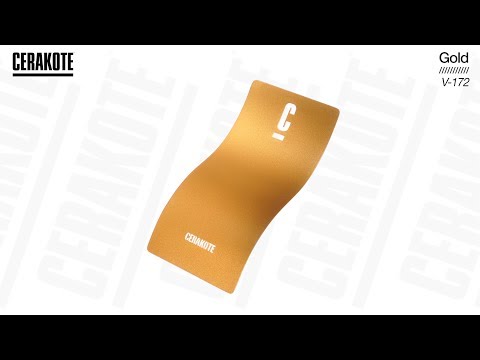

  • Cerakote V-172 Gold YouTube Color Sample

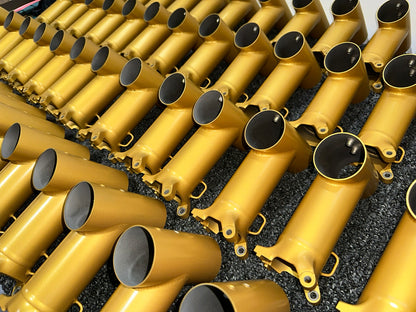

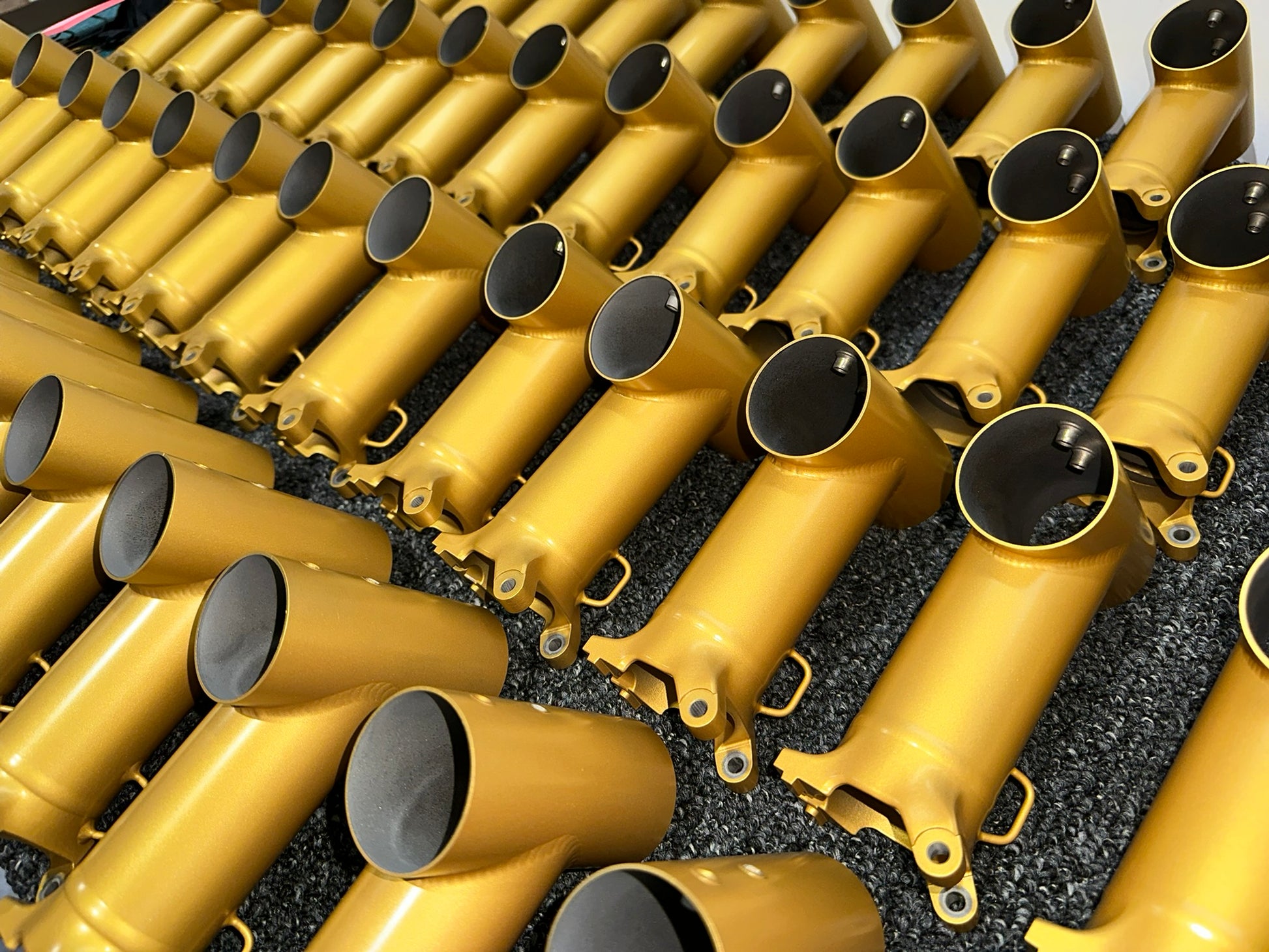

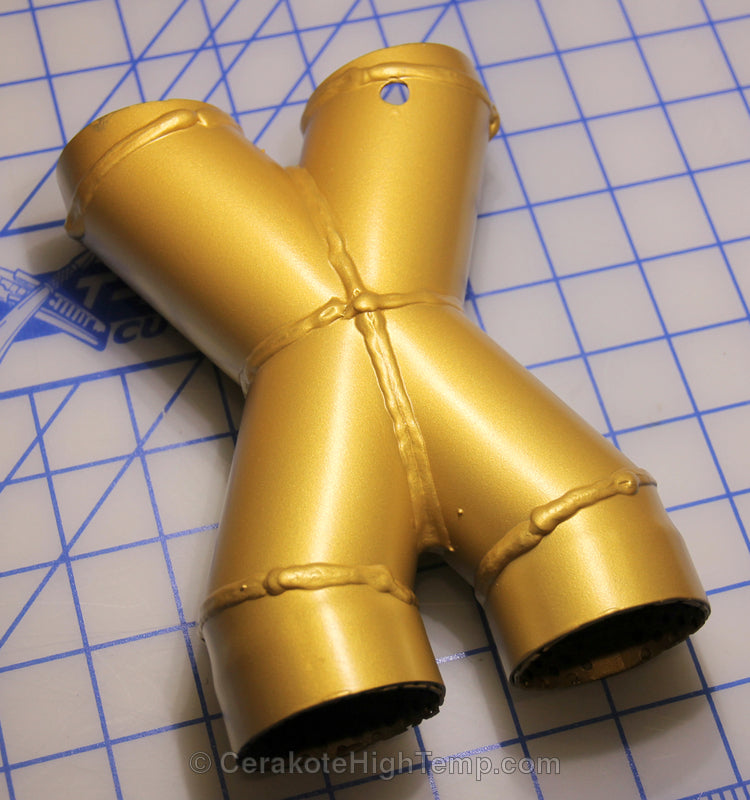

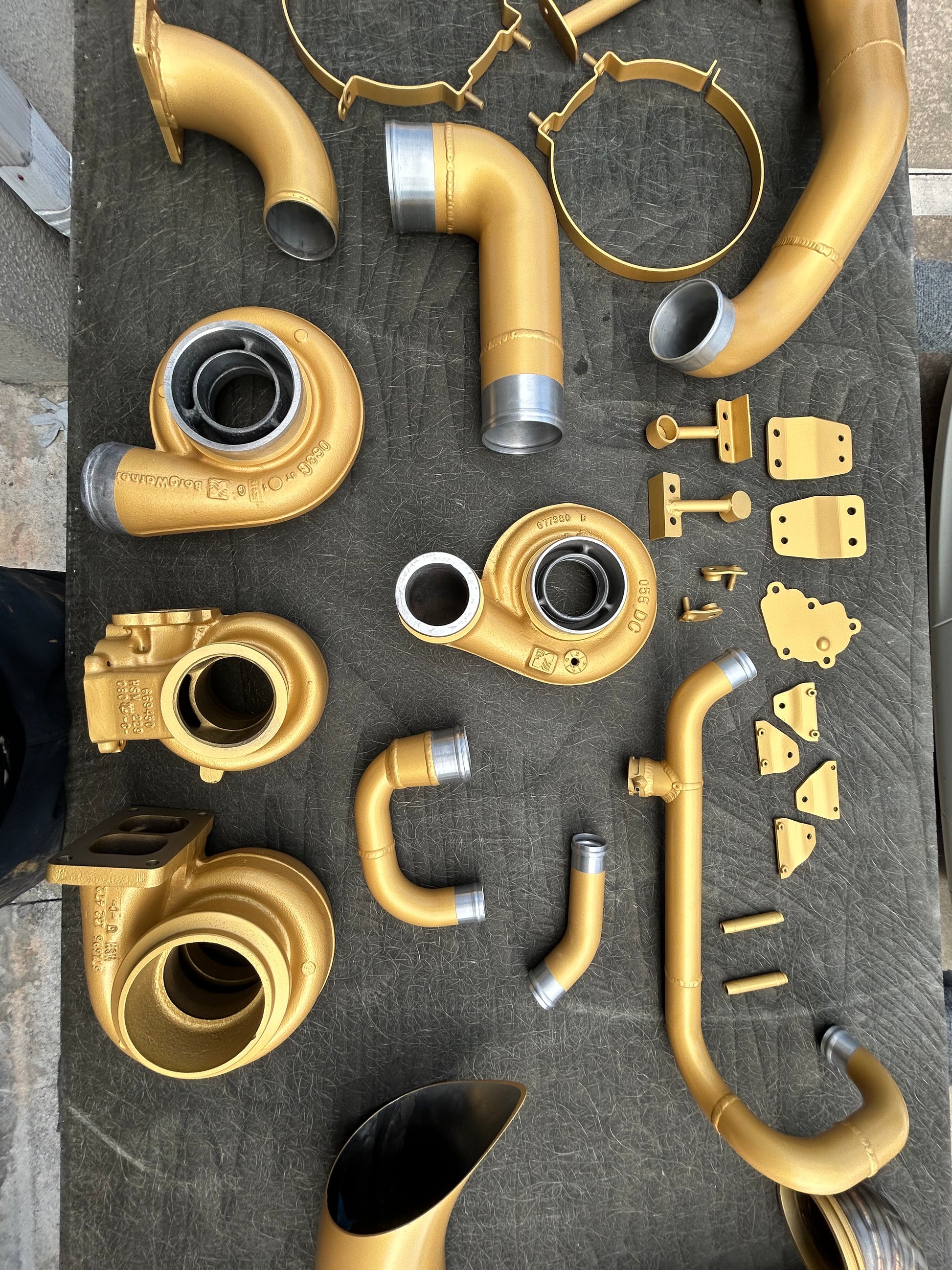

  • Cerakote V-172 Gold Customer Sample
  • Cerakote V-172 Gold Customer Sample
  • Cerakote V-172 Gold Customer Sample

CERAKOTE

V-172 | Gold

€39,00
€39,00
€330,51 l
Shipping will be calculated at checkout

The prices include import duties and handling, but exclude the VAT applicable in your country.

Hazardous material: UN number 1993, hazard class 3

  • American Express
  • Apple Pay
  • EPS
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Union Pay
  • Visa
  • Official Distributor
  • Worldwide Sale & Shipping
  • 1-5 Days Express Shipping

Documents

Safety Data Sheet
Application Guide

Questions about the product?

We are happy to help.

  • High Temp

Cerakote V-172 Gold is a bright, radiant gold.

  • Suitable substrates: All ferrous and non-ferrous metals
  • All coatings in the V series are single-component and ready to spray
  • V series coatings are a high-performance product for industrial applications
  • The gloss level may vary depending on the application

NOTE: No hardener is required for this product. A 100-mesh screen (SE-275) is required for this color.

Cerakote ceramic coatings of the V series are the undisputed market leader among high-temperature thin-film coatings and are suitable for temperatures up to 1000 °C. The V series coatings offer unmatched high-temperature performance along with excellent chemical resistance, durability, and an attractive appearance. The basis of Cerakote V series coatings is a unique inorganic ceramic technology that ensures both high temperature resistance and excellent physical stability. Thanks to the inorganic composition, V series coatings are UV resistant.

Heat resistance
Chemical resistance
Corrosion protection
UV protection

Technical Data

Filter sieve

100 (Artikel SE-275)

Drying

Oven Curing

Drying Plan

Let dry at room temperature for 15 minutes, then bake in the oven at 260°C for 1 hour.

Layer thickness

25 µm

Gloss Level

11 GU

Density

1.26 g/ml

Proportion of solid components

60%

Viscosity

15 cP

Hardness Grade Gouge (ASTM D3363)

7H

Scratch Hardness (ASTM D3363)

7H

Crosscut Adhesion (ASTM D3359)

5B

Flexibility (Mandrel Bend ASTM D522)

98%

Impact Performance Direct/Indirect (ASTM D2794)

6.78 Nm / 4.52 Nm

Color Stability (max. Temperature)

up to 150°C

Temperature Stability (max.)

up to 1000°C

Testing procedures

All results are based on blasted steel coated with the recommended film thickness and cured according to the recommended curing cycle.

Gloss levels are measured at a 60° angle. Deviations from the recommended conditions lead to different results. Gloss is influenced by the quality of pretreatment and the spraying technique.

Viscosity measured under ambient conditions (air temperature, relative humidity) at the time of manufacture.

Recommended curing temperature:

  • Please refer to the curing cycle specifications provided for each Cerakote product.

The maximum temperature is the temperature up to which the paint or coating remains stable.

Chemical resistance testing: The results refer to color changes according to the CIE76 formula. The results range from:

  • Excellent: ∆E change <2.5 (★★★★)
  • Good: ∆E change <3.0 (★★★☆)
  • Satisfactory: ∆E change <3.5 (★★☆☆)
  • Poor: ∆E change <4.0 (★☆☆☆)

The test parameters are as follows:

  • Hardness or pencil hardness tests are measured from soft to hard as follows: 9B, 8B, 7B, 6B, 5B, 4B, 3B, 2B, B, HB, F, H, 2H, 3H, 4H, 5H, 6H, 7H, 8H, 9H. 9H is the highest hardness level.
  • SG-100 only: Hardness test Method A — An X-cut is made through the coating down to the substrate; a self-adhesive tape is applied over the cut and then removed. Adhesion is qualitatively rated on a scale from 0 to 5.
  • Adhesion is measured on a scale from 0B, 1B, 2B, 3B, 4B, 5B, with 5B being the highest achievable rating.
  • Flexibility or bend test on a conical mandrel: “100% resistance” is the highest achievable rating and means the coating showed no cracks or flaking.
  • Impact resistance (direct/indirect) is measured on a scale from 0 Nm to 18.08 Nm, with 18.08 Nm being the highest achievable rating.
V-172 | Gold

€39,00

In-house production

Call us or send us an email if you are interested in implementing Cerakote coating solutions in your company. We are happy to advise you and provide you with all the necessary information.

Outsourcing

If you have your parts manufactured or externally coated by a manufacturer, ask them about Cerakote options for your parts. If they do not offer Cerakote coating, feel free to contact us. We are happy to connect you with one of our certified coaters across Europe.
